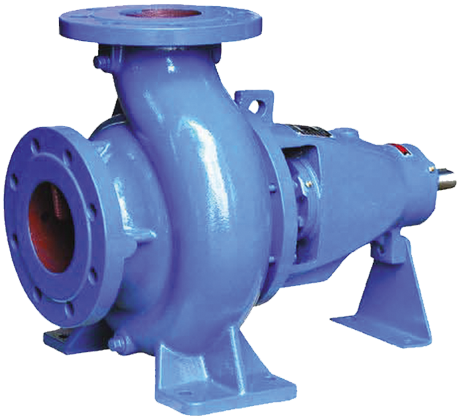

| Lyco end-suction centrifugal pumps are multi-purpose pumps suitable for a variety of different applications that demand reliable and cost-efficient supply, especially for large flow-rate application. |
| |
|
| Description |
| |
|
| The EA series pumps comply with the European Standard DIN2425S covering both the performance and dimensions. |
| |
|
| Operating Conditions |
| |
|
| • |
Flow Rate: 2 to 1100 m3 |
| • |
Head: 2 to 150 m |
| • |
Speed: |
| |
| ▸ |
1450-2900 rpm (50Hz) |
| ▸ |
1750-3500 rpm (60Hz) |
|
| • |
Standard working temperature: -10 °C to +105 °C |
| • |
Maximum working pressure: 10 bar; optional working pressure: 16 bar |
| |
|
| Features |
| |
|
| The pump performance can be altered by trimming the outer diameter of the impeller. Four difference sizes of shafts and bearing housing are made for the EA series. Parts have high interchangeability and are easy to maintain.

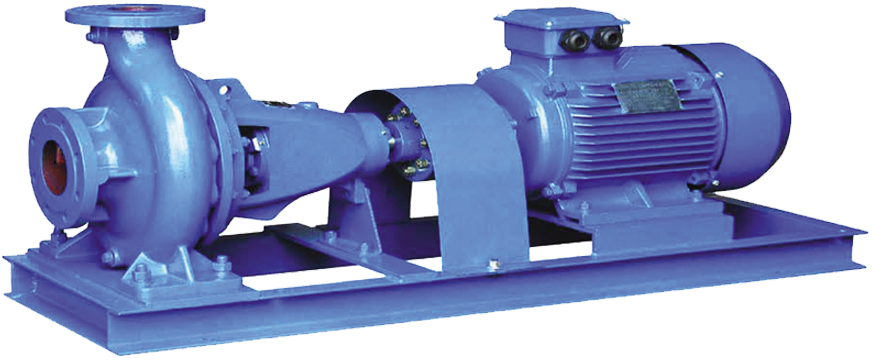

The horizontal single-stage volute casing pumps have a back pullout design such that the casing and motor can remian in position while other pump parts can be removed for simple and quick maintenance when a suitable spacer coupling is fitted to the direct-coupled unit. |
| |
|
| Operating Conditions |
| |
|
| • |
Plants |
| • |
Mines |
| • |
City water supply |
| • |
Air-conditioning coolers |
| • |
Fire-fighting systems |
| • |
Irrigation |
| |
|
| |
|
